Notation for Geometry:
A = area, P = perimeter, C = circumference
V = volume, H = Height, hyp = Hypotenuse
ANGLES and PARALLELS(

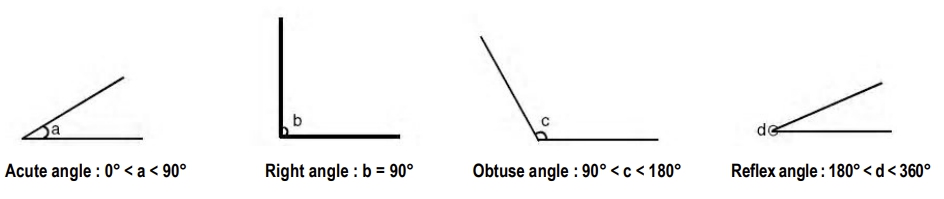

a) Two straight lines which meet at a point form an angle between them.
(
b) Theorems :

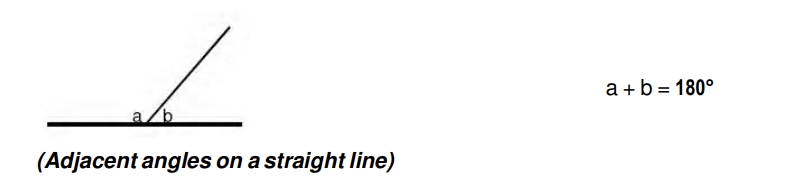

1. If AOB is a straight line, then

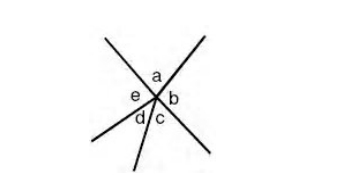

2. The sum of all the angle at a point, each being adjacent to the next, is 4 right angles.
⇒ a + b + c + d + e = 360° (Angles at a point)
3. If two straight lines intersect, the vertically opposite angles are equal.
a = b, c = d (Vertically Opposite angles)

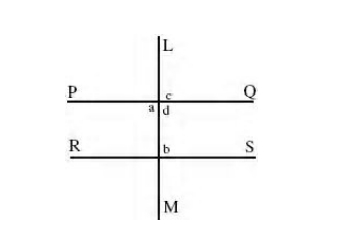

4. Parallel lines PQ and RS are cut by a transversal LM, then we have :
The corresponding angles are equal c = b (Corresponding angles, PQ || RS)
The alternate angles are equal a = b (Alternate angles, PQ || RS)
The interior angles are supplementary b + d = 2 right angles (Interior angles, PQ || RS)
5. (
i) Two angles whose sum is 90°, are complementary. Each one is the complement of the other.
(
ii) Two angles whose sum is 180º, are supplementary. Each one is the supplement of the other.
Attachment:
GRE angles.jpg [ 48.08 KiB | Viewed 7142 times ]
Attachment:
GRe 180 2.jpg [ 26.33 KiB | Viewed 7090 times ]
Attachment:
GRE angle 3.jpg [ 10.7 KiB | Viewed 7087 times ]
Attachment:
GRE opposite angle 4.jpg [ 7.46 KiB | Viewed 7104 times ]
Attachment:
GRe parallel 5.jpg [ 10.38 KiB | Viewed 7093 times ]
