GRE Geometry Formulas project is the best complement to our
Official GRE Quant Book. It provides a cutting-edge, in-depth overview of all the math concepts to achieve 170 in the Quantitative Reasoning portion of the GRE. The book still remains our hallmark. However, the following chapters will give you a lot of tips, tricks, and shortcuts to make your quant preparation more robust and solid.
QUADRILATERALSA closed figure (plane) bounded by four sides is called a quadrilateral. In any quadrilateral :
\(A = \frac{1}{2} \times\) one diagonal \(\times\) (sum of perpendiculars to it from opposite vertices).
(
a) Sum of the four interior angles = 360°
(
b) If a quadrilateral can be inscribed in a circle, it is called a cyclic quadrilateral. Here opposite angles are supplementary. If one side is produced, then the exterior angle = Remote interior angle.

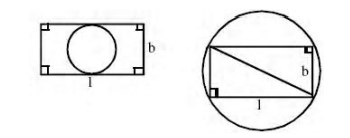

RectangleA quadrilateral whose opposite sides are equal and each internal angle equal to 90°, is called a rectangle.
\(l = length\)
\(b = breadth\)
\(A = l \times b\)
\(P = 2 (l + b)\)
Diagonal \(= \sqrt{(l^2 + b^2)}\), diagonals are equal and bisect each other.
(
a) Opposite sides equal, each angle = 90°
(
b) Diagonals bisect each other (not at 90°).
(
c) Of all rectangles of given perimeter, a square has max. area
(
d) When inscribed in a circle, it will have maximum area when it’s a square.
(
e) Figure formed by joining the midpoints of a rectangle is a rhombus.
(
f) The biggest circle that can be inscribed in a rectangle will have the diameter equal to the breadth of the rectangle.
(
g) When a rectangle is inscribed in a circle, the diameter of the circle is equal to the diagonal of the rectangle.

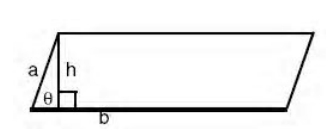

ParallelogramA quadrilateral in which opposite sides are equal and parallel is called a parallelogram.
\(A = bh\)
\(P = 2 (a + b)\), Diagonals bisect each other.
(
a) Opposite angles are equal
(
b) Diagonals bisect each other (not at 90°)
(
c) Sum of any two adjacent angles = 180°
(
d) Diagonals are unequal in lengths and do not bisect angles at vertices.

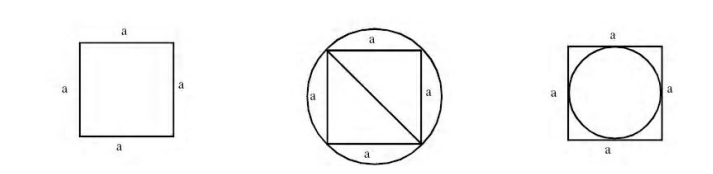

SquareA quadrilateral whose all sides are equal and all angles 90° is called a square
\(Area=a^2 \)
\(Diagonal=a\sqrt{ 2} \)
\(Area=\frac{Diagonal^2}{2}\)
\(P=4 \times side\)
(
a) Diagonals bisect each other at 90° and are equal
(
b) When inscribed in a circle, diagonal = diameter of circle
(
c) When circumscribed about a circle, Side of square = Diameter of circle.
(
d) The figure formed by joining the mid-points of the sides of a square is also a square. In this case the side will become \(\frac{1}{\sqrt{2}}\) times the side of the original square, perimeter will become \(\frac{1}{\sqrt{2}}\) times the perimeter of the original square and area will become \(\frac{1}{2}\) times the area of the original square.
(
e) If a square (biggest possible) is inscribed in a circle of radius r, then Diameter of circle = Diagonal of Square. If the area of the circle is A then \(A = \pi r^2=\frac{\pi D^2}{4} or \frac{D^2}{2} =\frac{2A}{\pi}\) or Area of Square \(= \frac{2A}{\pi} or 2r^2\)
(
f) If a circle is inscribed in a square of side a, then
Side of square = Diameter of circle. If the area of the square is S, then the area of circle \(= \frac{\pi S}{4} =\frac{ \pi a^2}{4}\)
RhombusA parallelogram whose all sides are equal is called a rhombus.
\(A=\frac{1}{2} \times D_1 \times D_2 ( D_1, D_2 are diagonals)\)
\(P=4a\)
Diagonals are at right angles
\(D_1^2+D_2^2=4a^2\)
(
a) Opposite angles are equal
(
b) Diagonals bisect each other at 90°.
(
c) Sum of any two adjacent angles = 180°.
(
d) Diagonals are unequal.
TrapeziumA quadrilateral in which one pair of opposite sides is parallel is a trapezium. \(A =\frac{1}{2} \times (a + b) \times h\)
CYCLIC QUADRILATERAL1. The four vertices lie on a circle.
2. Opposite angles are supplementary.
3. If any one side is produced, Exterior angle = Remote interior angle
