In the coordinate system above, line segment OR is rotated clockwise t
[#permalink]
08 Dec 2022, 11:37
08 Dec 2022, 11:37
Expert Reply
6
Bookmarks
00:00
Question Stats:
46% (01:43) correct
53% (01:41) wrong based on 49 sessions
Hide Show timer Statistics
Attachment:
GRE In the coordinate system above, line segment OR .jpg [ 14.2 KiB | Viewed 4480 times ]

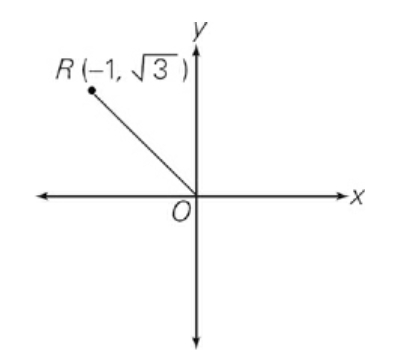

In the coordinate system above, line segment OR is rotated clockwise through an angle of 120° to position OS (not shown).
Quantity A |
Quantity B |
The x-coordinate of point S |
\(\sqrt{3}\) |
A. Quantity A is greater.
B. Quantity B is greater.
C. The two quantities are equal.
D. The relationship cannot be determined from the information given.
Re: In the coordinate system above, line segment OR is rotated clockwise t
[#permalink]
11 Dec 2022, 04:00
11 Dec 2022, 04:00
Expert Reply
OE
Drawing a horizontal line from point R to the positive y-axis forms a right triangle. The length of the leg that sits on the y-axis is \(\sqrt{3}\), and the horizontal leg you just drew has length 1. The ratio of the legs is 1 to \(\sqrt{3}\), so you have a 30-60-90 right triangle. Therefore, the hypotenuse (OR) has length 2, and the angle between OR and the positive y-axis is 30 degrees. The first quadrant includes 90 degrees total, so rotating OR 120 degrees clockwise puts OS on the positive x-axis, with a length of 2. Therefore, the x-coordinate of OS is 2, which is slightly larger than \(\sqrt{3}\), which is approximately 1.7. The answer is choice (A).
Drawing a horizontal line from point R to the positive y-axis forms a right triangle. The length of the leg that sits on the y-axis is \(\sqrt{3}\), and the horizontal leg you just drew has length 1. The ratio of the legs is 1 to \(\sqrt{3}\), so you have a 30-60-90 right triangle. Therefore, the hypotenuse (OR) has length 2, and the angle between OR and the positive y-axis is 30 degrees. The first quadrant includes 90 degrees total, so rotating OR 120 degrees clockwise puts OS on the positive x-axis, with a length of 2. Therefore, the x-coordinate of OS is 2, which is slightly larger than \(\sqrt{3}\), which is approximately 1.7. The answer is choice (A).
