Re: In the figure above, AB || CD and AD || BC. If BC is 4 units
[#permalink]
12 Feb 2021, 06:32

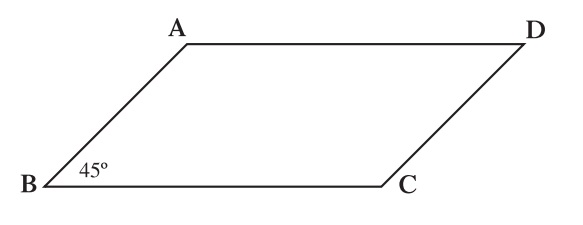

The figure above is a Parallelogram, where, AB || CD and AD || BC. Also, BC = AD = 4 and AB = CD = 2.
Area of a Parallelogram = Base x Height
Drop a perpendicular from point C to line segment AD (let us name it is as point E)
Now, triangle CED is an Isosceles Right Triangle [45-45-90 triangle]
Ratio of sides in 45-45-90 triangle = x:x:√2x
opposite to 45 = x
opposite to 90 = √2x = CD = 2
So, x = √2
i.e. Height = √2
Therefore, Area of parallelogram = 4 x √2 = 4√2
Hence, option B
