In the figure above, the area of the shaded square region is
[#permalink]
28 Dec 2020, 11:34
28 Dec 2020, 11:34
Expert Reply
00:00
Question Stats:
75% (01:16) correct
25% (01:35) wrong based on 20 sessions
Hide Show timer Statistics

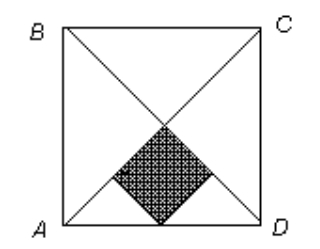

In the figure above, the area of the shaded square region is what percent of the area of the square region ABCD?
A. \(16 \frac{2}{3}\) %
B. \(12 \frac{1}{2}\) %
C. \(12\) %
D. \(8 \frac{1}{2}\) %
E. \(8\) %
Kudos for the right answer and explanation
Show: ::
Attachment:
GRE In the figure above, the area of the shaded square region.jpg [ 20.27 KiB | Viewed 2051 times ]
Re: In the figure above, the area of the shaded square region is
[#permalink]
31 Dec 2020, 20:04
31 Dec 2020, 20:04
1
1
Bookmarks
A diagonal divides the square into 2 parts.
Here two diagonals are dividing the square in 4 parts.
Each part is divided into 4 triangles. The shaded region has 2 triangles.
This is, 50% of the part.
Therefore, the area of shaded region is 50% of 25% of the square => 50/100 x 25/100 --> 1/2 x 1/4 --> 1/8.
= 0.125 => 12.5% => 12 1/2%. Hence the correct answer is option B.
Here two diagonals are dividing the square in 4 parts.
Each part is divided into 4 triangles. The shaded region has 2 triangles.
This is, 50% of the part.
Therefore, the area of shaded region is 50% of 25% of the square => 50/100 x 25/100 --> 1/2 x 1/4 --> 1/8.
= 0.125 => 12.5% => 12 1/2%. Hence the correct answer is option B.
Re: In the figure above, the area of the shaded square region is
[#permalink]
03 Jan 2021, 02:57
03 Jan 2021, 02:57
1
Let us consider the side of the big square as a
The area of the big square would then be \(a^2\)
Any diagonal cuts through the square in equal halves. With 2 diagonals the square is split in 4 equal sizes.
The area of the big triangle consisting the shaded square is \(\frac{1}{4} \) \(a^2\)
If you take any diagonal of the shaded square its length would be \(\frac{1}{2}\) a
The shaded square can be divided into two equal triangle of 45-45-90
The length of such a triangle is \(x:x:x\sqrt{2}\)
Therefore, \(x\sqrt{2}\) = \(\frac{1}{2}\) a
From this we can calculate a side of the shaded square as \(1/2\sqrt{2}\)*\(a\)
Area of the shaded square would be \(\frac{1}{2}\sqrt{2} * a \)* \(1/2\sqrt{2} * a\) = \(\frac{1}{8}\) * \(a^2
\)
Hence, this enables us to calculate the percentage as:
\(\frac{1}{8}\) \(a^2\) / \(a^2\) * 100
\(a^2\) cancels out giving \(\frac{100}{8}\) = 12.5 %
The area of the big square would then be \(a^2\)
Any diagonal cuts through the square in equal halves. With 2 diagonals the square is split in 4 equal sizes.
The area of the big triangle consisting the shaded square is \(\frac{1}{4} \) \(a^2\)
If you take any diagonal of the shaded square its length would be \(\frac{1}{2}\) a
The shaded square can be divided into two equal triangle of 45-45-90
The length of such a triangle is \(x:x:x\sqrt{2}\)
Therefore, \(x\sqrt{2}\) = \(\frac{1}{2}\) a
From this we can calculate a side of the shaded square as \(1/2\sqrt{2}\)*\(a\)
Area of the shaded square would be \(\frac{1}{2}\sqrt{2} * a \)* \(1/2\sqrt{2} * a\) = \(\frac{1}{8}\) * \(a^2
\)
Hence, this enables us to calculate the percentage as:
\(\frac{1}{8}\) \(a^2\) / \(a^2\) * 100
\(a^2\) cancels out giving \(\frac{100}{8}\) = 12.5 %
