SOLIDSCubeA six–faced solid figure with all faces equal and adjacent faces mutually perpendicular is a cube.
If “a” be the edge of a cube,
1. The longest diagonal \(= a\sqrt{3}\) The face diagonal \(= a\sqrt{2}\)
2. Volume \(= a^3\)
3. Total surface area \(= 6 a^2\)

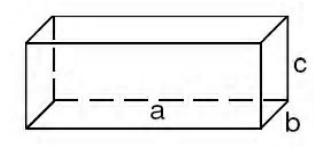

CUBOID or RECTANGULAR BOXIf a,b,c are the edges of a box,
1. The longest diagonal \(= \sqrt{(a^2 + b^2 + c^2)}\)
2. Surface area \(= 2 (ab + bc + ac)\)
3. Volume \(= abc\)
RIGHT CIRCULAR CYLINDERIf r is the radius of base and h is the height, then
[img]https://gre.myprepclub.com/forum/download/file.php?mode=view&id=14856&sid=39c06ed135b8f48a3a154da208f02f27[/img
1. Volume = \(\pi r^2 h\)
2. Curved surface area \(= 2 \pi rh\)
3. Total surface area \(= 2 \pi r (r + h)\)
4. If a rectangle of length L and breadth B is rotated about its length to form a cylinder, then \(L = 2 \pi R\) and \(B = h\).
5. If a rectangle of length L and breadth B is rotated about its breadth to form a cylinder, then \(B = 2 \pi R\) and \(L = h\)
RIGHT CIRCULAR CONER = radius of base
H = Height
L = slant height \(= \sqrt{(H^2 + R^2)}\)
1. Volume \(= \frac{1}{3} \times (\pi R^2H)\)
2. Curved surface Area \(= \pi R L\)
3. Total Surface Area \(= \pi R (R + L)\)
SPHERER = Radius
1. Volume \(= \frac{4}{3} \times \pi R^3\)
2. Surface Area \(= 4 \pi R^2\)
Attachment:
GRe cube.jpg [ 14.3 KiB | Viewed 3677 times ]
Attachment:
GRE rectangular.jpg [ 16.65 KiB | Viewed 3676 times ]
Attachment:
GRe cone.jpg [ 9.93 KiB | Viewed 3662 times ]
Attachment:
GRE sphere.jpg [ 9.92 KiB | Viewed 3661 times ]
Attachment:
GRE cylinder.jpg [ 16.13 KiB | Viewed 3258 times ]
